Jeep Design, Assembly, and Animation Project
Jeep designed by: Bryan Coburn
roll bar designed by: Dave Okasinski

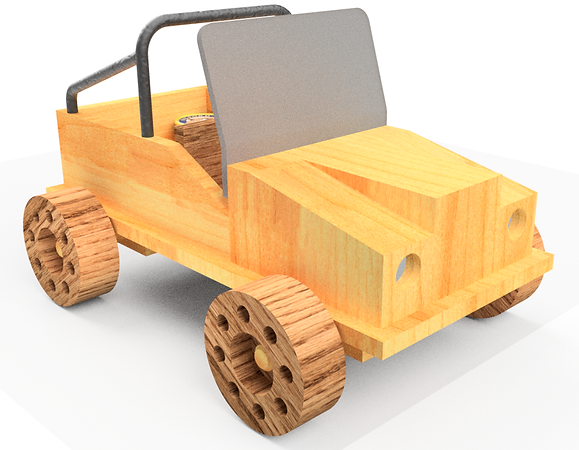

Perspective View of Assembly File

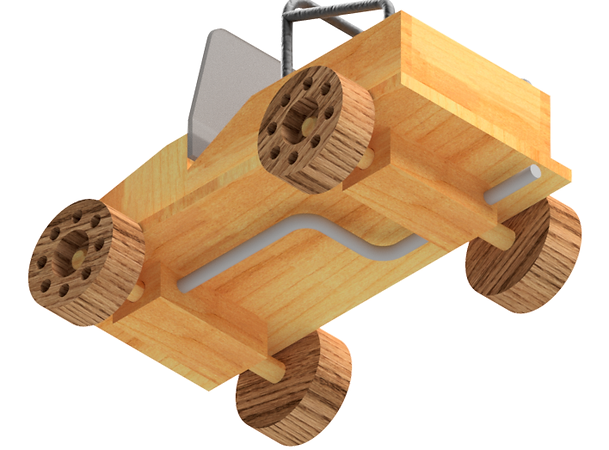

Part Design: Exhaust
Assembly file created in Autodesk Inventor Professional using flush/mate and insert constraints.
creating work planes and sweep feature to create an adaptive exhaust part file.

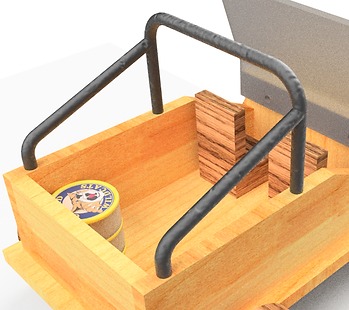

Part Design: Roll Bar
3D modeling sweep feature with a path and profile to create roll bar
VIDEOS
Animation created with Autodesk Inventor Studio to rotate /move parts and animating a camera.
Animation created with Autodesk Inventor Studio to show parts fading into view.

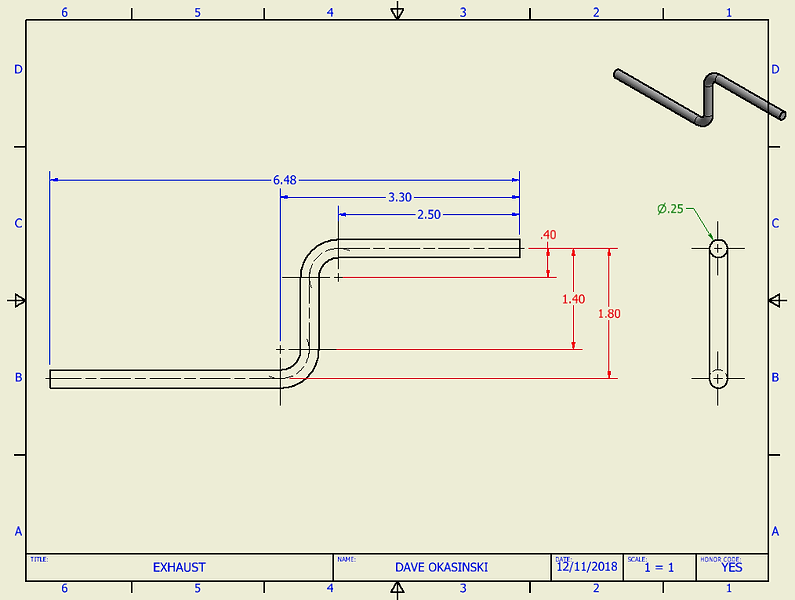

Detail Drawing of Exhaust
Multiview drawing with center lines and dimensions to describe specifications of Jeep exhaust.

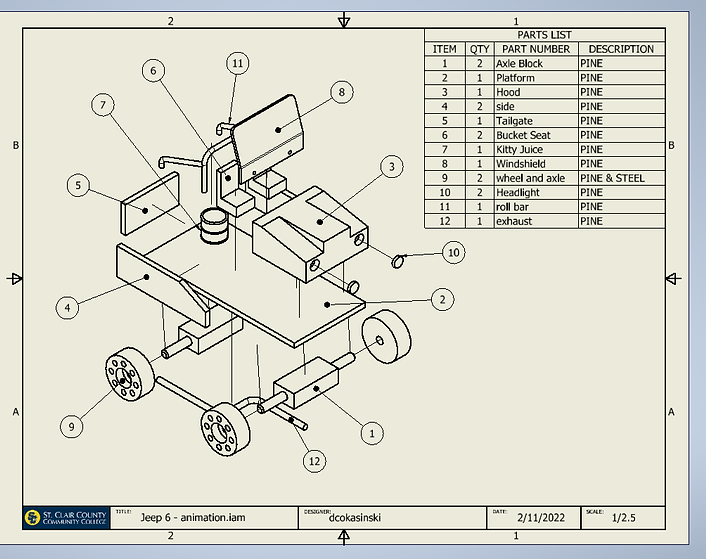

Exploded Assembly Drawing
